Powder coating is an alternative to traditional liquid paint, offering several benefits such as increased durability, resistance to chipping, fading, and scratching, as well as environmental advantages.
Brand :
WananMOQ :
150 KGSShelf time :
6 MonthsLead time :
7 days-15 daysPlace of Origin :
Fujian,ChinaMain Raw Material :

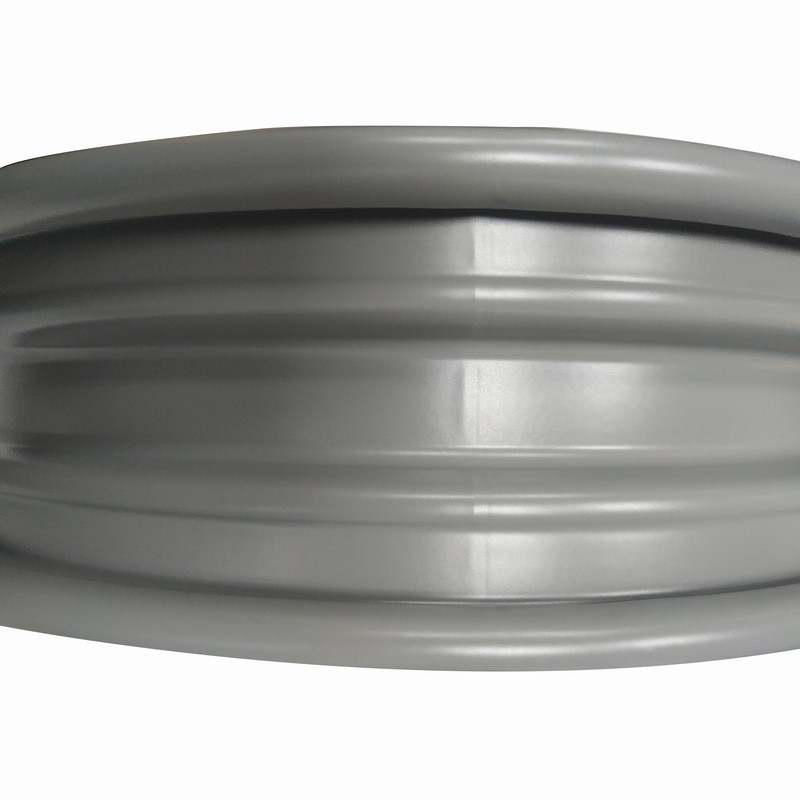

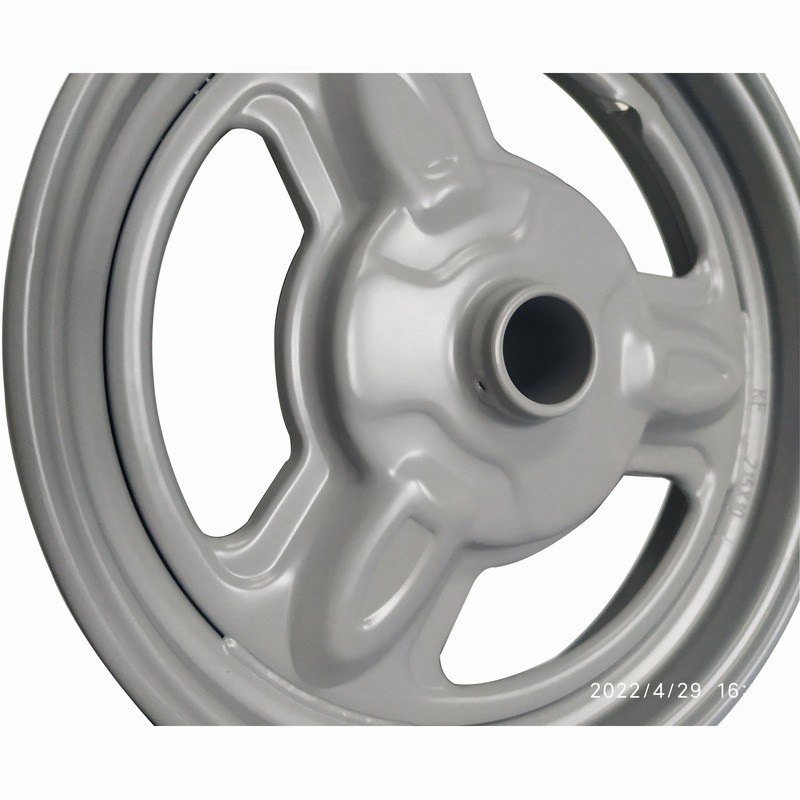

Epoxy Polyester ResinGrey Color Matte Surface Wheel Hub Powder Coating Primer
Powder coating is a term used to describe a particular finish or base. It starts out as a fine powder. This powder consists of finely ground particles of pigment and polymer resin. After application to a surface, the powder is chemically altered with heat to create a finishing film.
Quick Details
Item# | 31H4721089015 |
Appearance before coating | Grey color loose powder |
Appearance after coating | Grey color matte film |
Film Thickness | 70-90μm |
Curing Condition | 200℃(Object temperature) for 20 minutes |
Impact Resistance | Direct & Indirect >25kg/cm |
Pencil Hardness | F |
Flexibility | 4mm Mandrel |
Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
Acid Resistance | 3% HCL for 240 hours test - No change |
Alkali Resistance | 5% NaOH for 240 hours test - No change |
Package | Carton packing with PE bag,net weight 20kg or 25kg each carton. |
The powder coating process involves several steps:
1.Surface Preparation: The car's surface needs to be thoroughly cleaned and stripped of any dirt, grease, or old paint. This step ensures proper adhesion of the powder coating.
2. Masking: Any areas that should not be coated, such as windows, rubber trim, or sensitive components, need to be masked off to protect them during the coating process.
3. Powder Application: The powder coating material, which consists of finely ground particles of pigment and resin, is applied to the car's surface using a spray gun. The powder particles are electrostatically charged, which helps them adhere evenly to the grounded metal surface.
4. Curing: After the powder coating is applied, the car or its parts are subjected to high-temperature curing in an oven. The curing process allows the powder to melt and form a continuous film, bonding to the surface and creating a hard and durable finish. The curing time and temperature depend on the specific powder coating material being used.
5. Post-Curing and Finishing: Once the curing process is complete, the car or its parts are allowed to cool down. Any necessary touch-ups or additional coatings can be applied at this stage to achieve the desired finish. Some car owners may choose to add clear coating for extra protection and shine.
Car powder coating offers numerous advantages over traditional liquid paint. It provides a thicker and more durable finish, which is resistant to chips, scratches, and fading. Powder coatings are also available in a wide range of colors, textures, and finishes, allowing car owners to achieve custom looks. Additionally, powder coating is an environmentally friendly process as it produces less waste, emits fewer volatile organic compounds (VOCs), and does not require the use of solvents.
APPLICATIONS
Powder coatings have replaced solvent-based coatings and have found the greatest commercial success in applications such as automotive, appliances, outdoor furniture, lawn and garden products, architectural and building / construction, electrical / electronics, non-metallic products such as MDF board,MDF furniture and much more.
Powder coating is a very popular way to paint parts, and there are numerous finishes and colors available. powder coating provides a range of advantages over conventional painting methods, and it yields a durable, attractive finish.
There have 7 most obvious benefits of powder coating:
1.Efficiency
2.Low Cost
3.Durability
4.Variety
5.Maintenance
6.Quality
7.Environmental Friendly
WHY CHOOSE WANAN
Fujian WANAN Industry Group Co.,Ltd. is a high-tech enterprise which specializing in manufacturing thermosetting powder coating.
Founded in January of 1996 and after more than 27 years developing,we already became one of the top manufacturer which focusing on research,developing manufacturing and sales.
Our powder coatings had gained a great reputations from both home and abroad,we have approved by ISO 9001:2015,ISO 14001:2015,ISO 45001:2018,IATF 16949,CNAS and QUALITOAT.
Our brand stable quality,well coating ability,strong impact resistance,strong adhesion,perfect weather resistance property and large painting area.WANAN brand keep Top 3 in China since 1996.
QUALITY CONTROL
There are certain specific tests for powder coatings and for the cured coating. Once powder coating is delivered to the end user, it can’t be adjusted like a solvent based paint. Therefore extremely strict quality control must be exercised by the powder manufacturer during all stages of the manufacturing process.
FAQ
Q1: Are you factory or trading company?
A1: We are professional powder coating factory with more than 600 employees.
Q2: Where is the location in China?
A2: Our company headquarter is located in ZhangZhou city,Fujian province,China,30mins distance to Xiamen port.
Q3: Can you provide samples for quality checking before place order?
A: Samples are avaliable upon request,but the shipping cost will be bear by customer.
Q4: Is there a discount price?
A: Of course,bigger quantity will be bigger discount.
Q5: How about leadtime?
A:Estimate lead time: About 7-15 working days after payment confirmed.
Q6:Are there powders for interior or exterior use?
A:It is depend on client's requirement.
Q7:How many colors do you have?
A:RAL,Pantone or any customization color is available.
Q8:Do you have any available powder coating stock?
A:Yes we stock more than 400 of popular colors or contact us to order specific color that you need.
Q9:How should I store powder coating well?
A:Store at room temperature(30℃),keep cool,dry and away from direct sunlight.
